Description

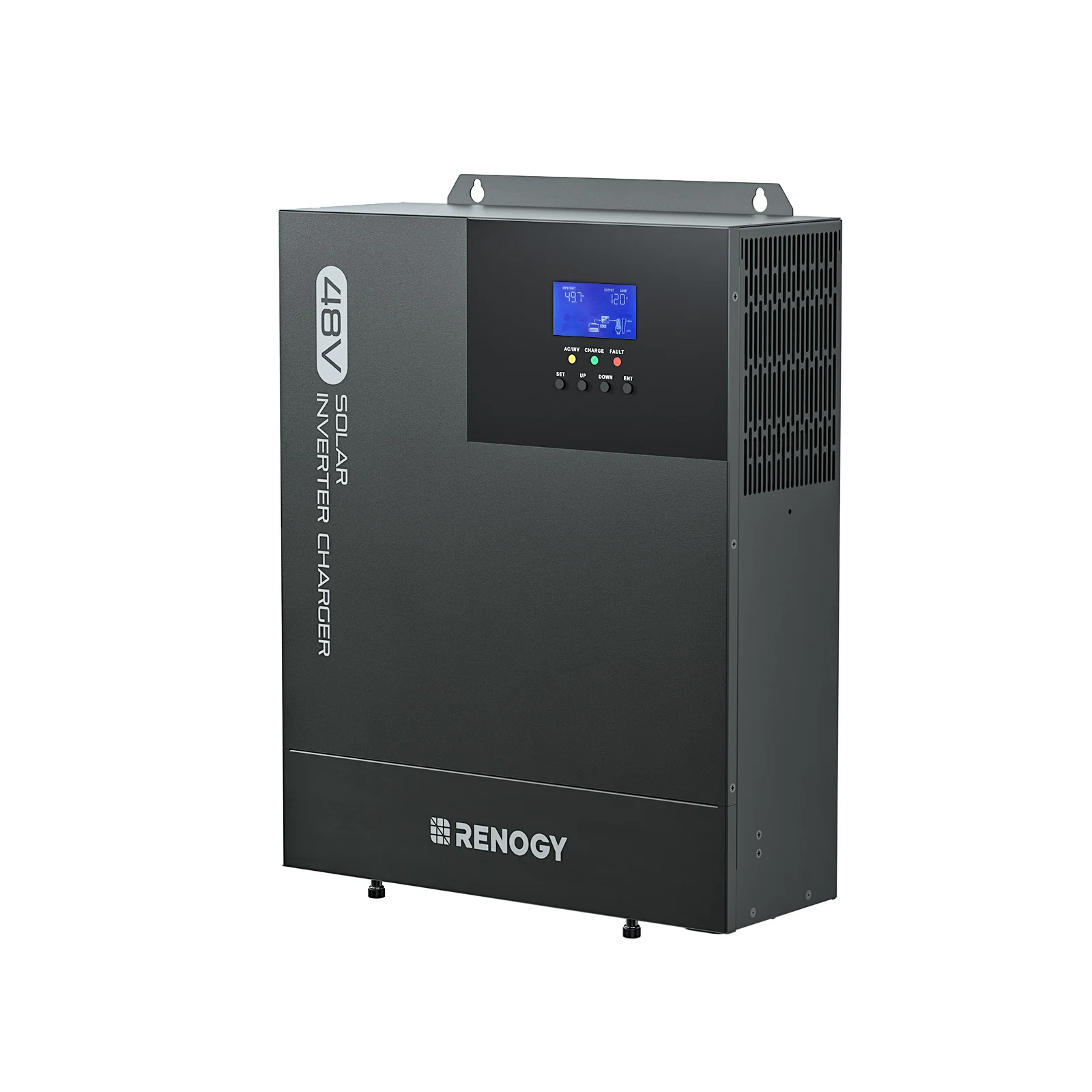

Renogy's 3500W 48V Inverter Charger combines AC/generator battery charging and battery inverting into one convenient solution to take your off-grid system to the hybrid level. Compatible with 48V battery banks, this inverter charger gives you the ultimate control with user-configurable AC charging mode and two load output modes that can turn your system into an uninterruptible power supply (UPS). Observe your overall system with the integrated LCD screen, capable of showcasing all input/output system information and identifying any potential errors. This reliable, pure sine wave inverter charger has built-in electronic safeguards to protect you and your system. Equipped with multiple features and modes, the Renogy Inverter Charger is a powerful addition to any 48V system!

If you have any questions regarding this product, please submit a case!

Key Features

3500W Pure Sine Wave Inverter Output with 7000W Surge—features user-configurable battery charger (120A max), switchable frequencies (50Hz/60Hz), and an optional power-saving mode.
Equipped with state of the art MPPT technology, boasting an efficiency of up to 99%, and a powerful bypass function with UPS.
Preset battery modes for 48V AGM/Sealed, Gel, Flooded, and Lithium batteries. Includes a User mode for custom inputs to work with virtually all battery types.
4 Charging Modes: PV Priority, Utility Priority, Hybrid Charging, and Solar Only; 3 Load Output Modes: PV Priority, Utility Priority, and Inverter Only.
Dynamic LCD and intelligent LEDs provide relevant system information and identify any errors.
Exhaust ventilation fans allow for excellent heat dissipation, extending the system's life.
Complete software and hardware protection, including short circuit, over-voltage, overload, and more!

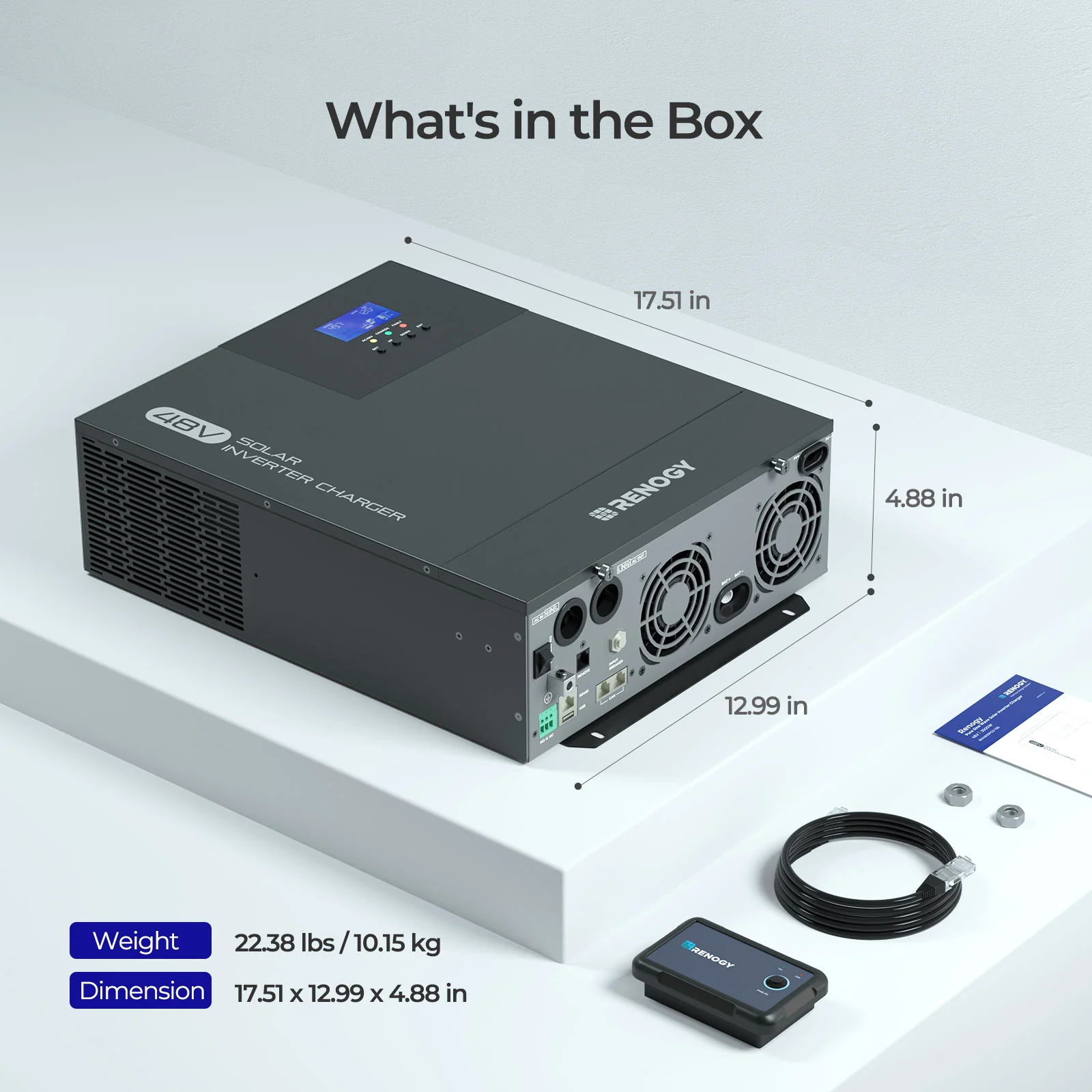

Package Includes

48V 3500W INVERTER CHARGER 1 x

AC
Rated Output: 3500W	Power Factor: 1
Input Voltage: 120VAC	Input Voltage Range: 85 ~ 140VAC ± 2% Adjustable
Input/Output Frequency: 50/60Hz Adjustable	Output Voltage: 120VAC±5%
Output Waveform: Pure Sine Wave	Peak Efficiency: >95%
Max AC Charging Current: 30A	Conversion (Bypass and Invert): 10ms typical

SOLAR CHARGER
Max PV Input/Output Power: 4400W/4200W	Max PV Charging Current: 80A
Max PV Input Voltage: 150V (145V recommended)	Max PV Input Current: 50A
Algorithm: MPPT	MPPT Voltage Range: 60 ~ 115V

BATTERY CHARGER
Battery Type: Lead Acid or Lithium	Max Battery Charging Current: 120A (Adjustable)
Battery Voltage Range: 40 ~ 60V DC	Voltage: 48V

ENVIRONMENTAL/ MECHANICAL
Operating temperature: 5°F ~ 131°F / -15°C ~ 55°C	Storage Temperature: -13°F ~ 140°F / -25°C ~ 60°C
Humidity: 5% ~ 95% (3 Layer Paint Protection)	Dimensions: 16.8 x 12.7 x 4.9in / 426 x 322 x 124mm
Weight: 23.8lbs / 10.8kg	Certifications: FCC Part 15 Class B, ROHS

Warranty Information

Accessories	1-year material warranty

1.What Is an Inverter Charger with MPPT?

It is an Integrated unit wit MPPT solar charge controller, pure sine wave inverter, and battery charger in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances. Renogy's 3500W 48V Solar Inverter Charger combines solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to the hybrid level.

2. Can I use this inverter to charge my batteries?

Yes. Compatible with 48V battery banks, this solar inverter charger keeps your battery charged with solar panels and AC/generator.

3. Can I use the inverter with a 24V system?

No. This model can only work with 48V battery system.

4. What size inverter should I buy?

1. Sizing the right power output. Make sure your inverter charger can handle at least 1½ times the load of continuous demand you expect to have regularly. To figure this out, simply add up the wattage of each device you plan on running simultaneously. Be sure the inverters you’re considering will be able to supply enough AC power. 2. Check your battery voltage. The DC voltage rating on the inverter will tell you what battery bank it is compatible with. For example, a 48V battery bank will require an inverter that is compatible with 48V DC input. 3. Size your installation spaces. What area or space will you set your inverter? Make sure the inverter will fit in the space you have in mind with enough room around it for proper ventilation and no fire hazards. 4. Remote operation is important. Renogy pure sine inverters come with convenient remote control (BT-2 )and DC HOME APP options so that you can operate the unit from afar.

5. Do I need Modified Sine Wave, or Pure Sine Wave?

Modified sine wave inverters are older technology and generally less expensive. They can be used for many standard appliances but may cause trouble with delicate electronics or audio equipment. Some equipment may work but run hotter than normal. Pure sine wave inverters are a bigger investment, but much more versatile. a) Output voltage wave form is pure sine wave with very low harmonic distortion and clean power like utility-supplied electricity. b) Inductive loads like microwave ovens and motors run faster, quieter and cooler. c) Reduces audible and electrical noise in fans, fluorescent lights, audio amplifiers, TV, Game consoles, Fax, and answering machines. d) Prevents crashes in computers, weird print out, and glitches and noise in monitors.

6. How do I hook up the Inverter? What size cable should I use, and is it included?

When connecting the inverter to the battery and solar panels, please read all of the instructions and cautions in the manual before beginning the installation. The minimum recommended wiring gauge for battery wiring is 2AWG, PV wiring is 4AWG, AC input and out wiring is 8AWG. Incorrect or improper connection points and corroded wires can cause great heat to melt the wire insulation, burning surrounding materials, and even cause fire, so ensure that the connection is tightened.

7. Does the Bluetooth Module work with this unit?

Yes, the Bluetooth 2 Module (Model: RCM-BT2) is compatible with the solar inverter. When paired with the DC Home APP you can view system information through your tablet or smart phone.

8. Can I use the solar inverter without batteries when using PV or Mains?

No, at minimum you need to have batteries connected to the unit.

9. Does this solar inverter limit PV current? I'm not getting my full power?

When setting up the solar inverter, ensure Program 36 (PV Charging Current) and Program 7 (Maximum Charge Current) are set to their maximum to ensure no PV current clipping.

10. Is it compatible with Renogy ONE?

Yes. This battery is compatible with Renogy ONE M1 & Core.

11. Can I use the Bluetooth Module to monitor this inverter charger from my phone? Which Bluetooth Module should I buy?

Yes, Bluetooth monitoring is supported. If necessary, you can acquire the BT-2 Bluetooth module for monitoring through either the DC Home app or Renogy One M1/Core Monitor.
