500A Battery Monitor with Shunt
Description
The Renogy Battery Monitor is an excellent addition to any solar system and will eliminate the guesswork from battery usage. This unit is able to monitor the amperage flowing out of the battery bank and will give an accurate state of charge reading on the LCD screen. Improve the overall performance and longevity of your battery bank today! Compatible with various types of battery: Lead Acid, Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
If you have any questions regarding this product; please submit a case.
Key Features
- High solar cell efficiency : Monocrystalline 18.4%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- High precision current detection
- High and Low Voltage Programmable Alarm - Backlight and voltage value will flash simultaneously
- Universal Battery Monitor- Voltage range 10V-120V and up to 500A

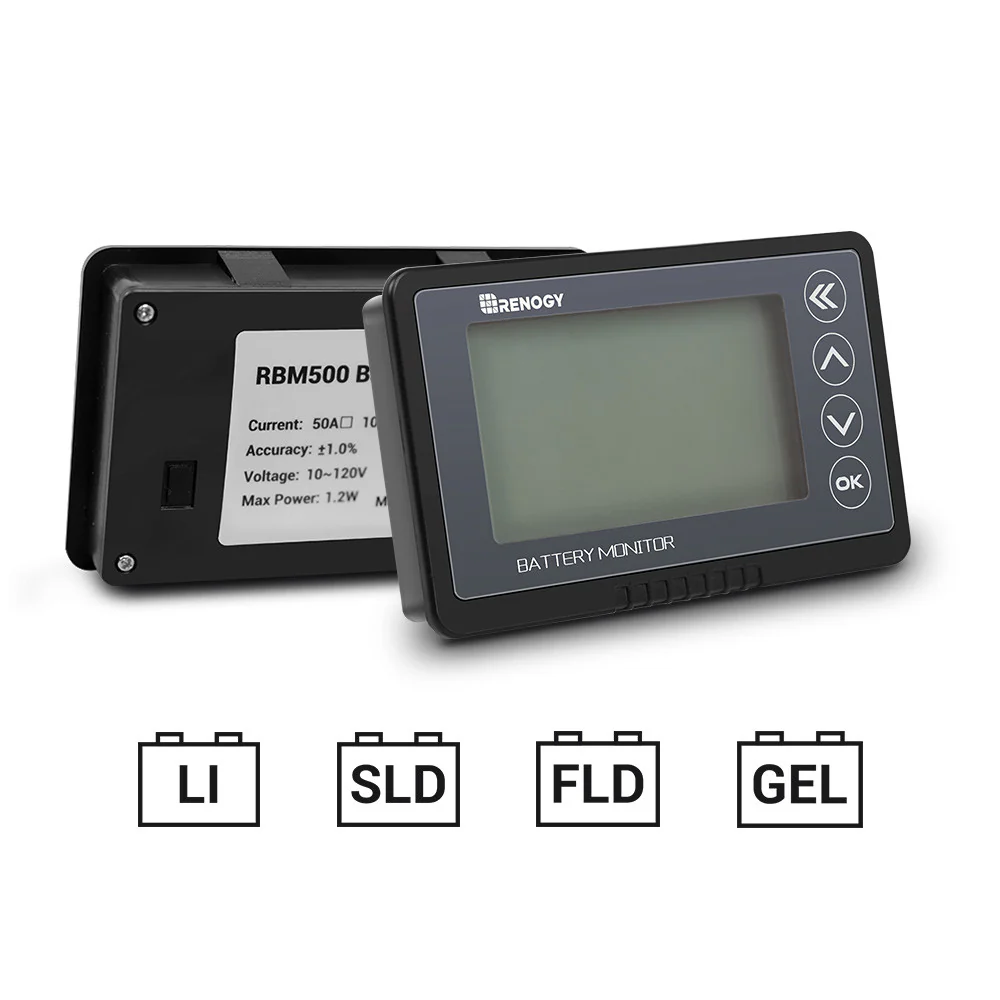

- Compatible with various types of battery: Lead Acid, Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
- Accurate Battery SOC%

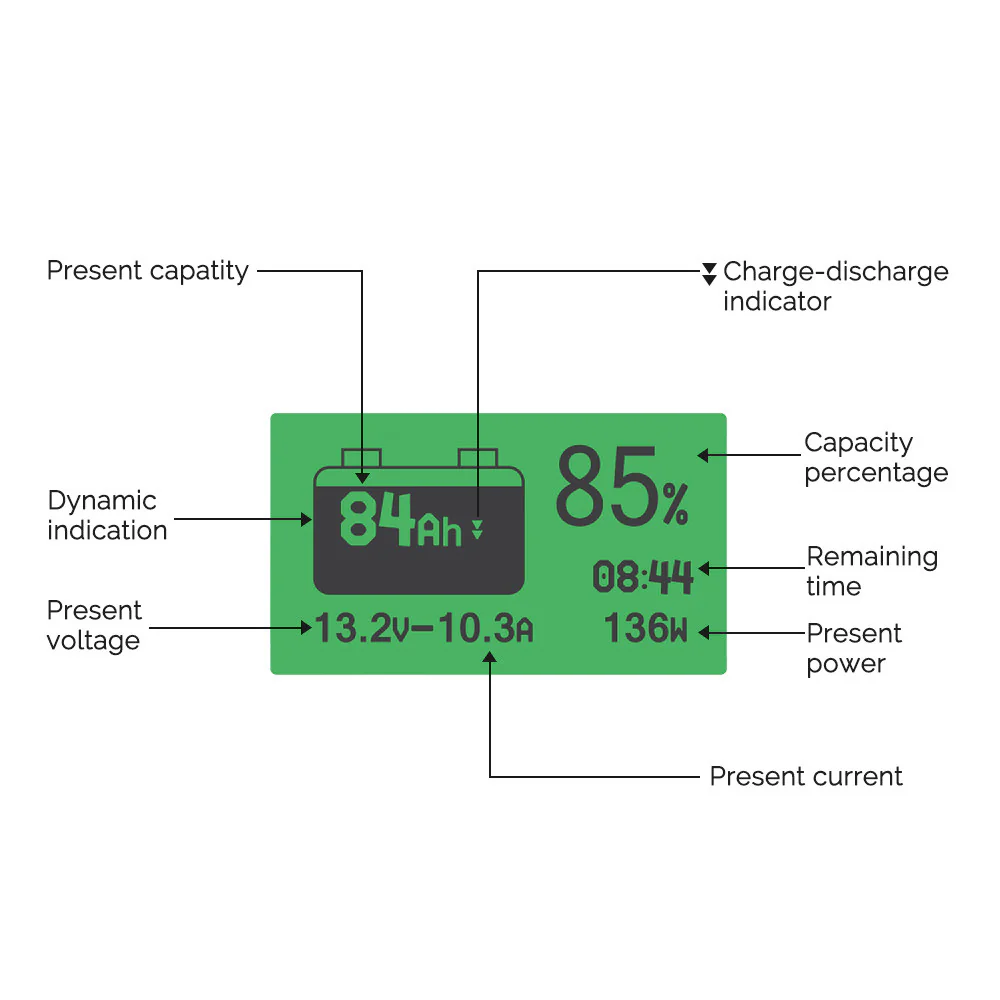

- Large backlit LCD Display
- Transparent shunt holder makes it easier to mount the shunt
- 20ft Shielded cable allows you to monitor the battery status from distance
Package Includes
|
LCD Interface
1 x |
500A Shunt/Sampler
1 x |
|
Shielded Wire
1 x |
B+ Wire
1 x |
|
Shunt Holder
1 x |
| SPECIFICATIONS | |
|---|---|
| Working Voltage:10-120V | Working Dissipation:10-15mA |
| Standby Dissipation:1-2mA | Voltage Accuracy:±1% |
| Current Accuracy:±1% | Capacity Accuracy:±1% |
| Backlight on current (>50A):100mA | Preset capacity value:0.1-9999.0 AH |
| Temperature range:-10-60°C（14-140°F） | Shielded Wire Length:20 ft/6 m |
| B+ Wire Length:3 ft/1 m | Weight (LCD Interface):2.6 oz / 75 g |

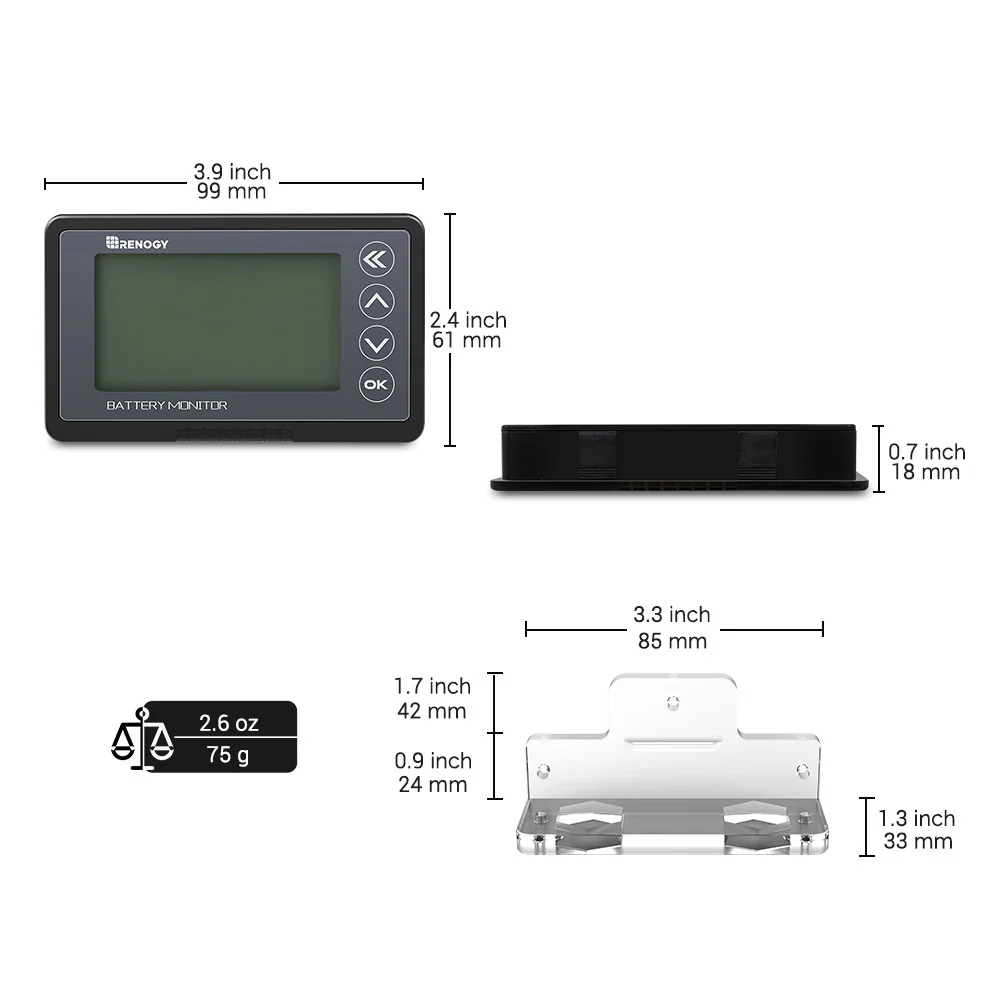

| Size (LCD Interface):3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm |
Warranty Information
| Warranty | 2-year material and workmanship warranty |
 |
 |
