BT-2 Bluetooth Module W/ RS485 Port
Description

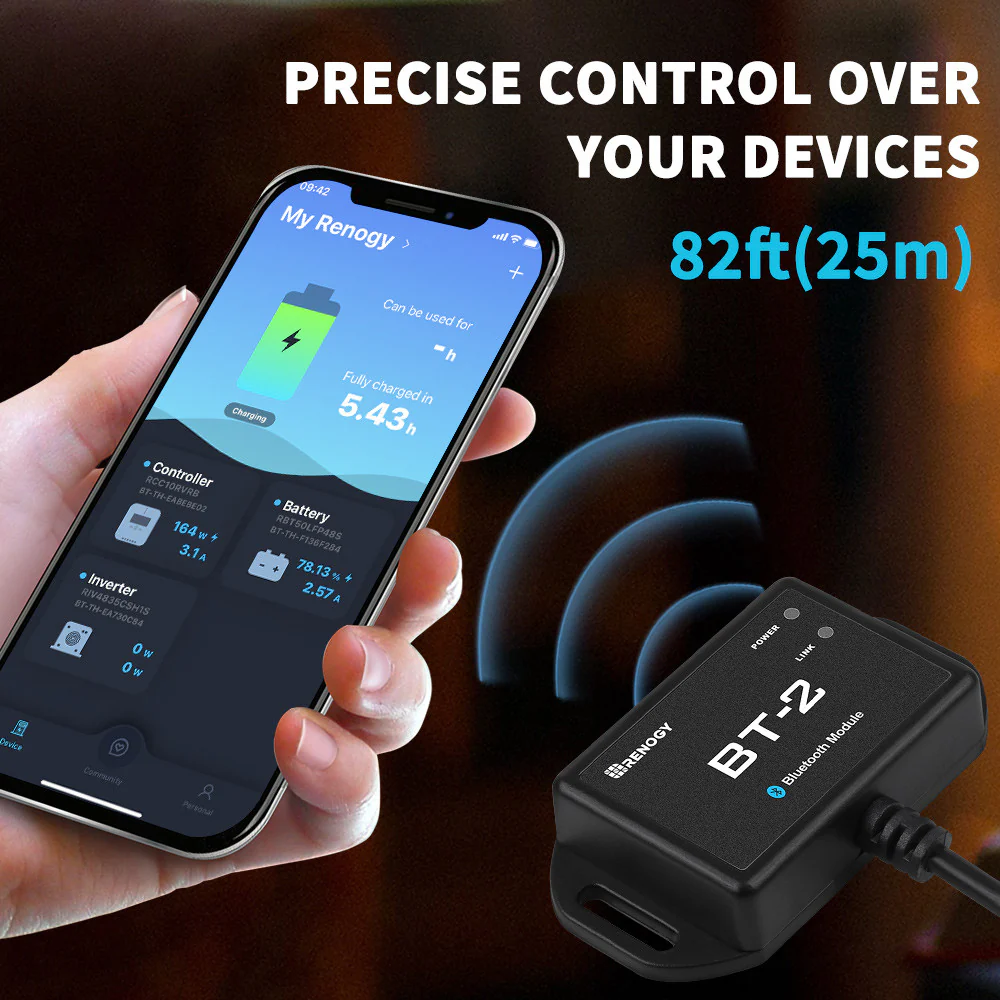

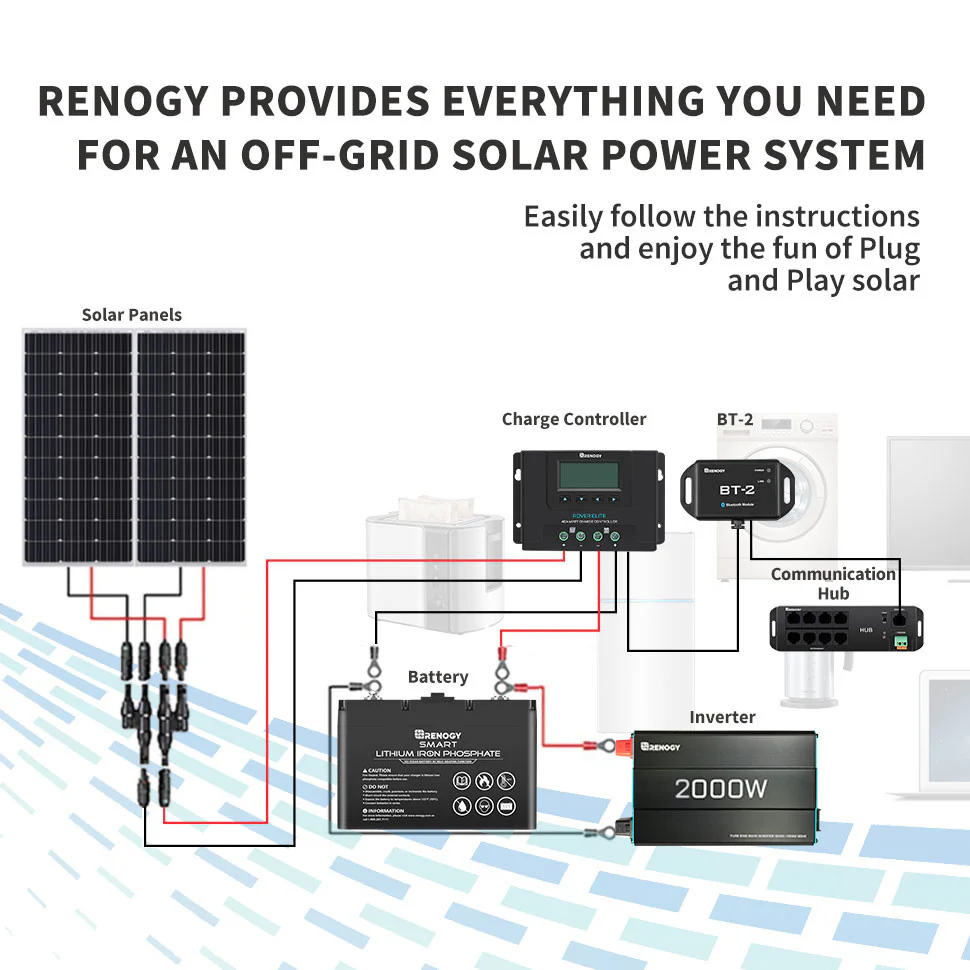

Meet the Renogy BT-2 Bluetooth Module! Unlike the BT-1, this new generation of Bluetooth Module is compatible with a variety of products, including Renogy solar charge controllers, smart lithium batteries, inverters, and DC-DC MPPT battery chargers. Connect the BT-2 to the component's RJ45 communication port to wirelessly check and adjust your system's parameters through the DC Home App (available in both the App Store and Google Play).
If you have any questions regarding this product; please submit a case.
Key Features
- Wirelessly monitor and adjust compatible solar charge controllers, smart lithium batteries, inverters, and DC-DC MPPT battery chargers, via Bluetooth

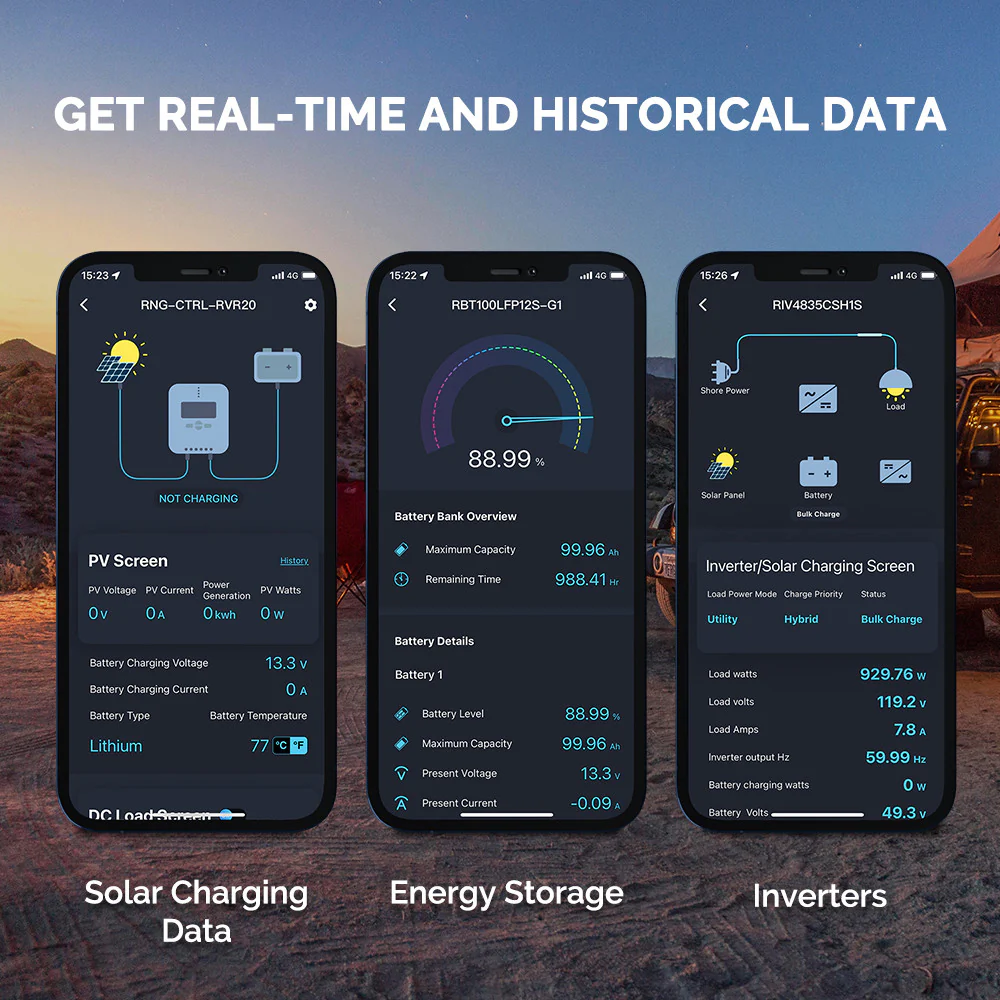

- Connect to our user-friendly smartphone App, Renogy DC Home, to keep track of your system
- Embedded Bluetooth chip with high efficiency and low energy consumption
- Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication
- Powered directly through the device's RJ45 communication port
- Signal range up to 20m.

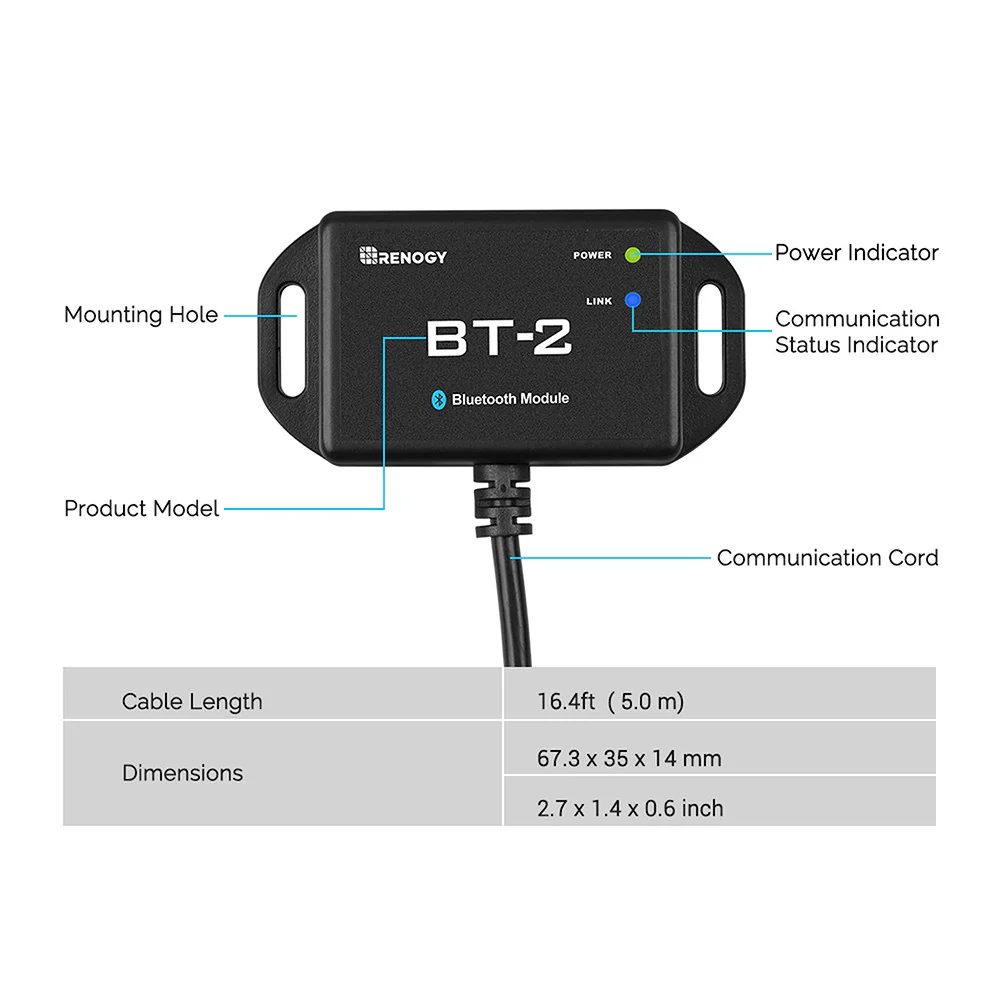

- Two LED lights that indicate the BT-2's power and Bluetooth connection status
DOWNLOAD LINKS
Package Includes
|
BT-2 Bluetooth Module for Solar Charge Controllers
1 x
|
| Specifications | |
|---|---|
| Communication Protocol: RS485 | Port Type: RJ45 |
| Input Voltage: 5V or 12V | Protection Grade: IP54 |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤20m | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 16.4 ft (5.00 m) | Dimensions: 2.7 X 1.4 X 0.6 in |
| Installation Dimensions: 67.3 φ3.5mm（2.66 φ 0.14in） | Operation Temperature: -20℃~85℃（-4°F to 185°F） |
| Weight: 130g (4.58oz) |
Warranty Information
| Accessories | 1-year material warranty |
Certification
 |
 |
 |
