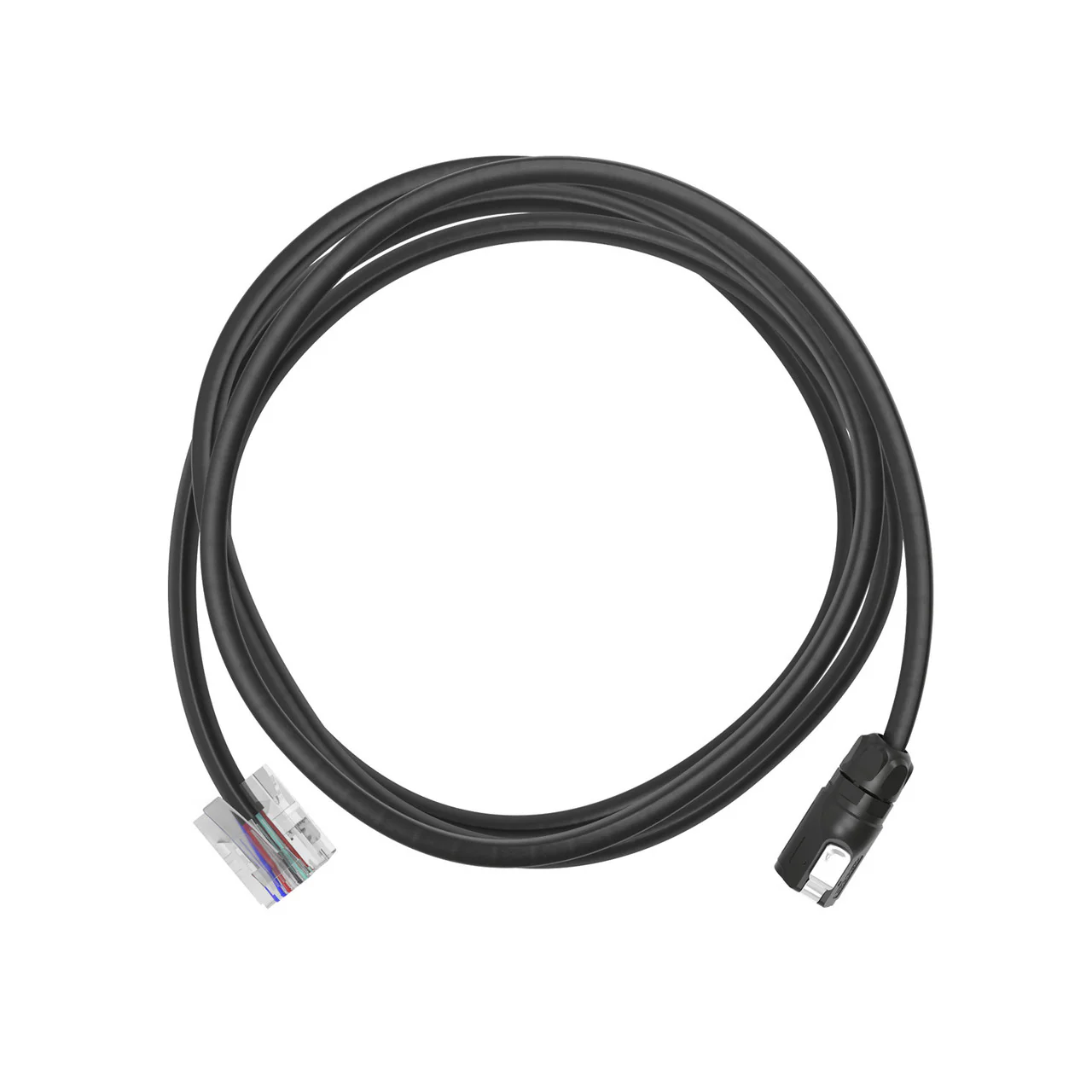

LP16 Plug (7-Pin) to RJ45 10Ft Communication Cable
Description

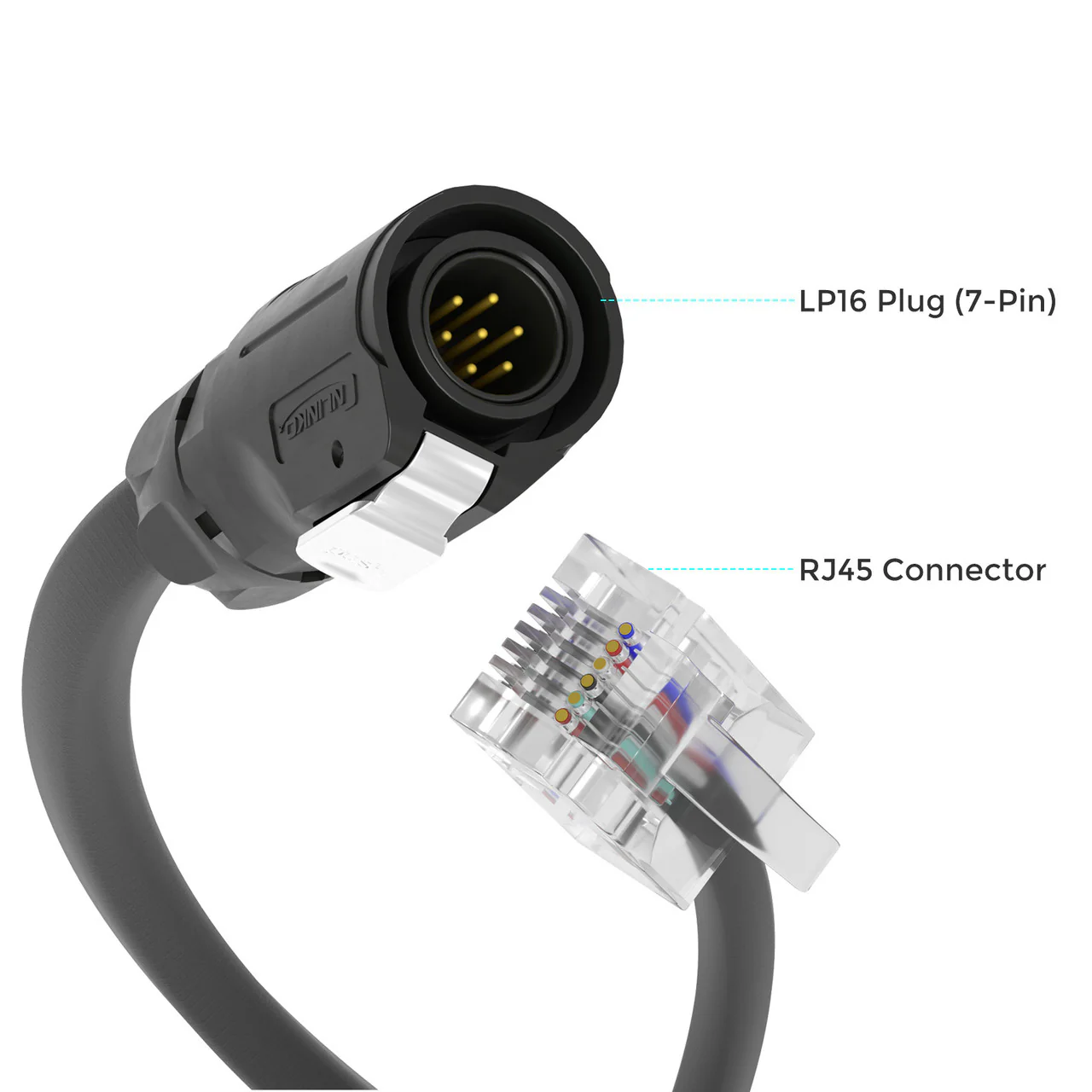

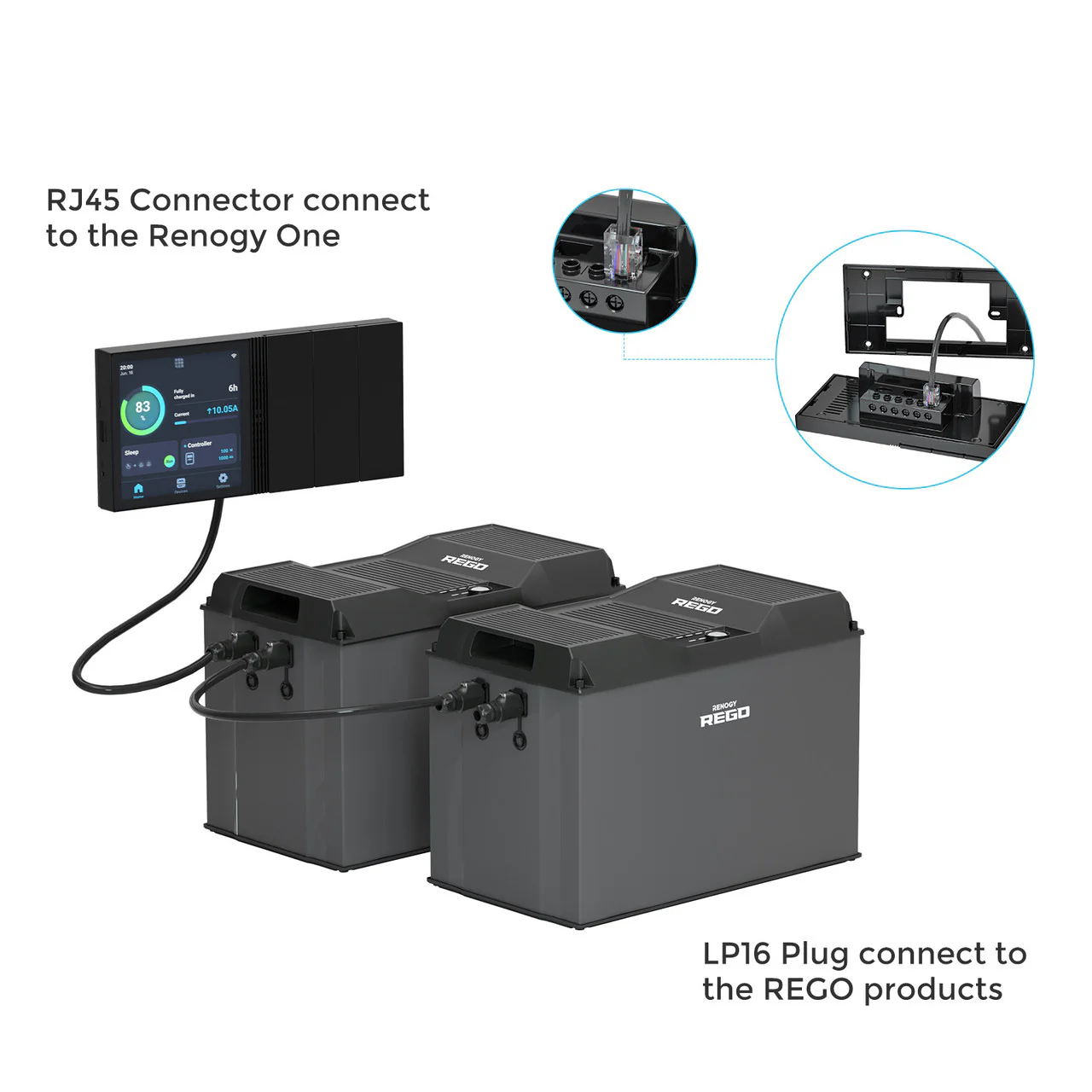

This LP16 Plug (7-Pin) to RJ45 Communication Cable is used to implement the communication connection between Renogy REGO series products and the Renogy One M1 all-in-one panel. One end of the communication cable has a standard RJ45 connector to connect your Renogy ONE RJ45 communication port, and the other end has a professional 7 Pin LP-16 connector, which can be connected to the CAN terminal of your REGO series products. The Renogy One command center is going to provide you with a full view of your REGO system, monitor and control every REGO device and even other smart devices in your system from only one screen. Supports remote parameter setting and 24-hour online monitoring, knowing the status of your system at all times for total peace of mind..
If you have any questions regarding this product, please submit a case.
Key Features
Add All-in-One Monitoring and Control to Your REGO System- One end of the communication cable has a standard RJ45 connector to connect your Renogy ONE RJ45 communication port, and the other end has a professional 7 Pin LP-16 connector, which can be connected to the CAN terminal of your REGO series products. The Renogy One command center is going to provide you with a full view of your REGO system, monitor and control every REGO device and even other smart devices in your system from only one screen.
- The quick plug design of the 7 Pin LP16 Plug allows one-hand plug/unplug, just tap to release, ensuring simple, fast, and stable operation and connection.
- The wire is made with UL-compliant 28AWG high-purity oxygen-free tinned stranded conductors, twisted in pairs, ensuring maximum conductivity. The contact core of the terminator plug uses 3um gold plating guaranteeing stable and efficient electrical performance all the time.
- The terminator plug adopts high-strength structural materials, a pressure-resistant structure design, can withstand greater vibration and shock, good insulation, low creep, and anti-aging. IP65-rated outdoor waterproof performance satisfies the high-quality performance required under harsh situations.
- Up to 8 batteries can be easily connected in parallel. Auto-balancing function, improve the average charging efficiency of your batteries over extended use.
- All materials of the terminator plug are RoHS compliant, preventing the risks posed to human health and the environment.
Package Includes
|
LP16 Plug (7-Pin) to RJ45 10Ft Communication Cable
1 x
|

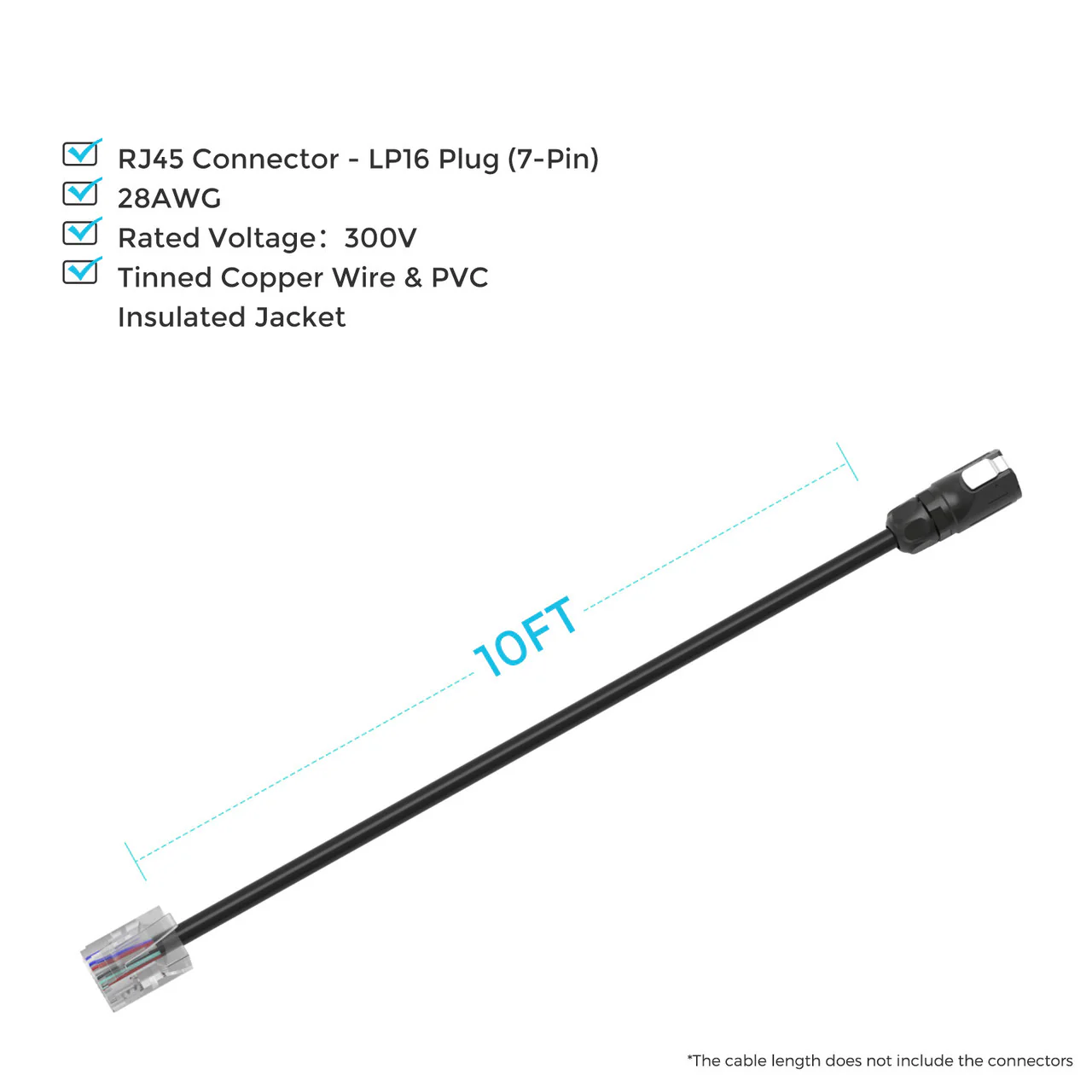

| Specifications | |
|---|---|
| Model:RCA10LR-6745-CA | Baud Rate:＞250kbps |
| Length:10Ft | Cable Material: Tinned Copper Wire & PVC Insulated Jacket |
| Size: 28AWG*2P+3C | Terminal Type/Size:RJ45 Connector - LP16 Plug (7-Pin) |
| Rated Voltage: 300V | Temperature Rating: 80℃/176℉ |
Warranty Information
| Material and Workmanship Warranty | 1 year |
| Certification | UL ROHS |
 |
